APPLICATIONS:
For sewing heavy to extra heavy weight materials such as webbing, leather, vinyl, synthetics, laminated and coated products.
Also suitable for sewing such products as cargo handling belts, containers, saddles, covers, sails, tents, camping trailer covers, awnings, hand bags, crane slings and truck tarp tie downs.

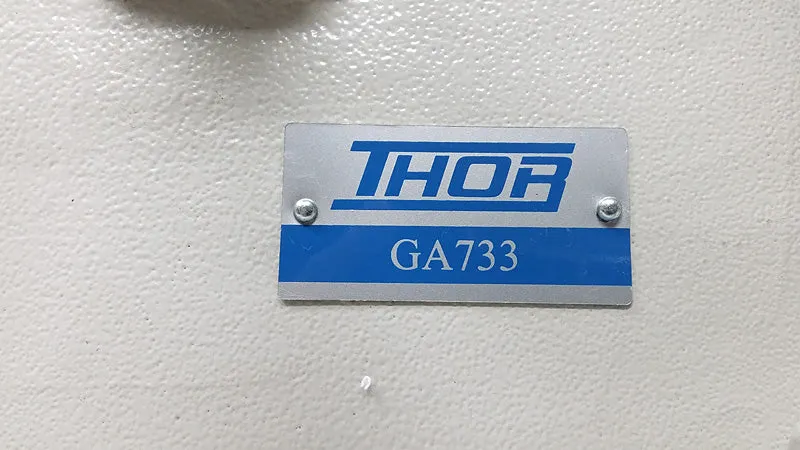

The GA733 is also capable of sewing with a wide range of thread sizes from 69 to 554.
FEATURES:

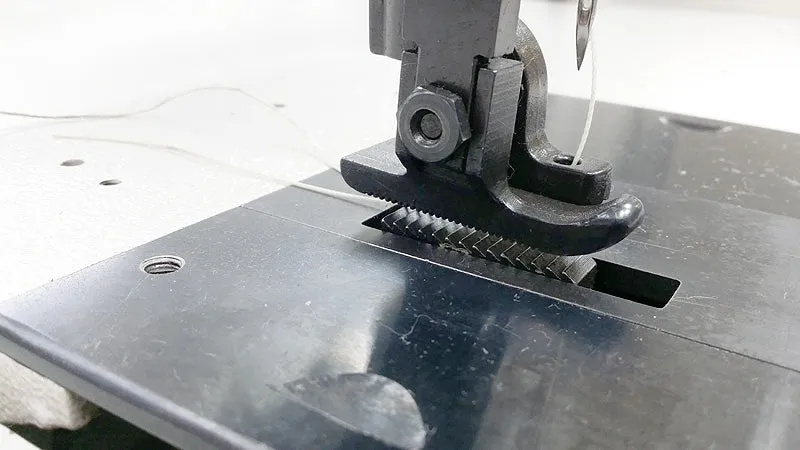

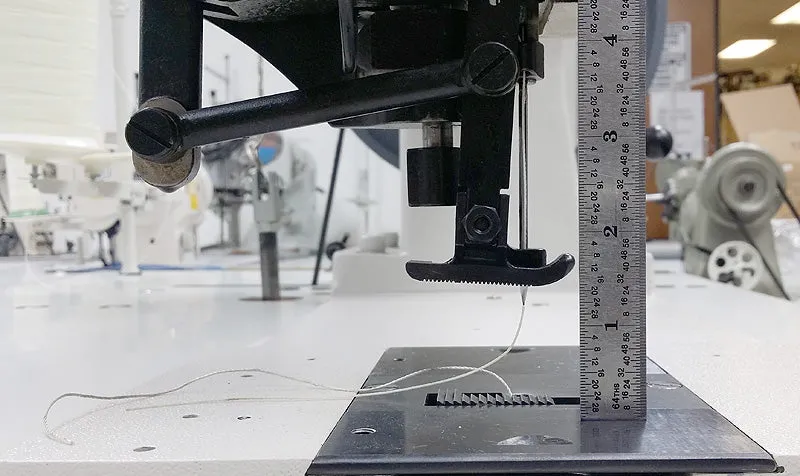

The high 33mm (1.5 inches) presser foot lift enables easy material handling for extra heavy materials.
The GA733’s bobbin allows for easy access and fewer bobbin windings in order to increase production.

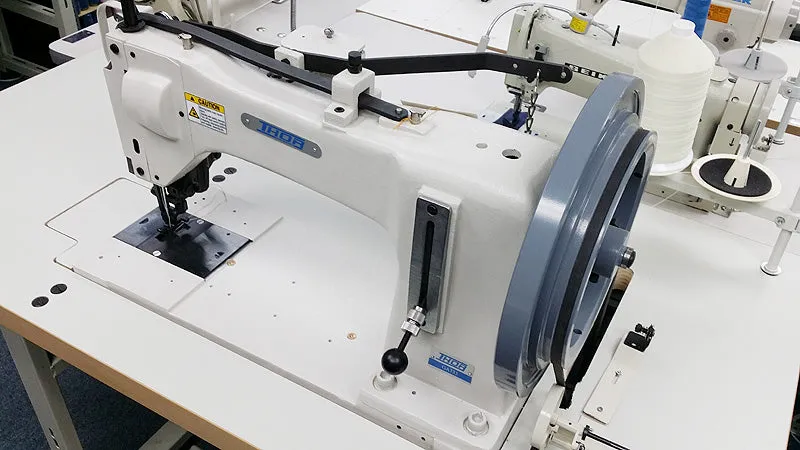

The reverse stitch and stitch length adjustment are easily accessible on the same lever. This allows for quick and easy adjustments with visual and physical feedback.
TECHNICAL SPECS:
- APPLICATION: For Heavy to EXTRA HEAVY Materials
- MAX SEWING SPEED: 600 SPM
- MAX STITCH LENGTH: 15mm (0.6") Forward/Reverse
- NEEDLE BAR STROKE: 56mm (2.2")
- FOOT LIFT: 33mm (1.5 Inches) by Knee (Push Pedal Air Liftter), 29mm by Hand
- HOOK: Oscilating Large Shuttle Hook
- NEEDLE: SM1000 # 27
- THREAD: TEX 69 to TEX 554
MACHINE SETUP:

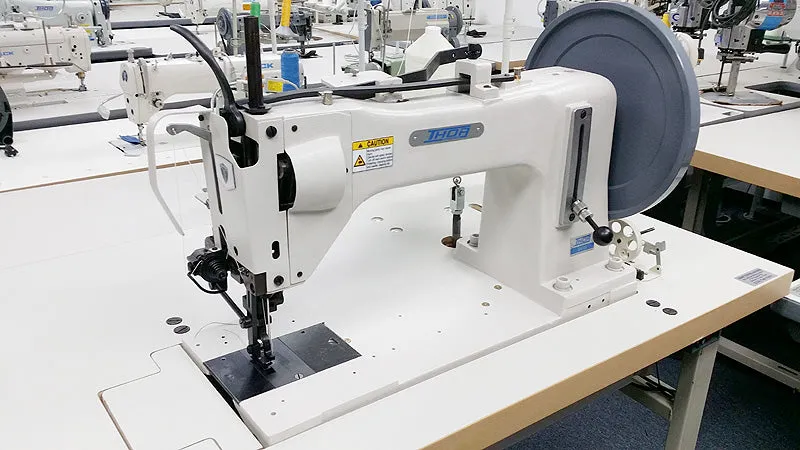

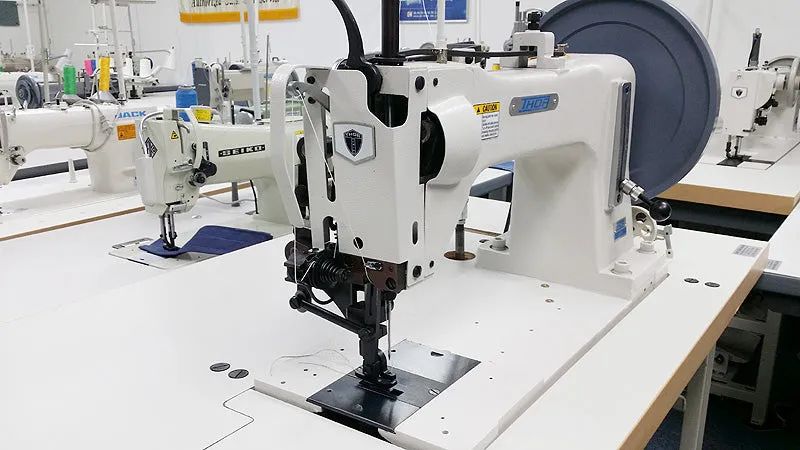

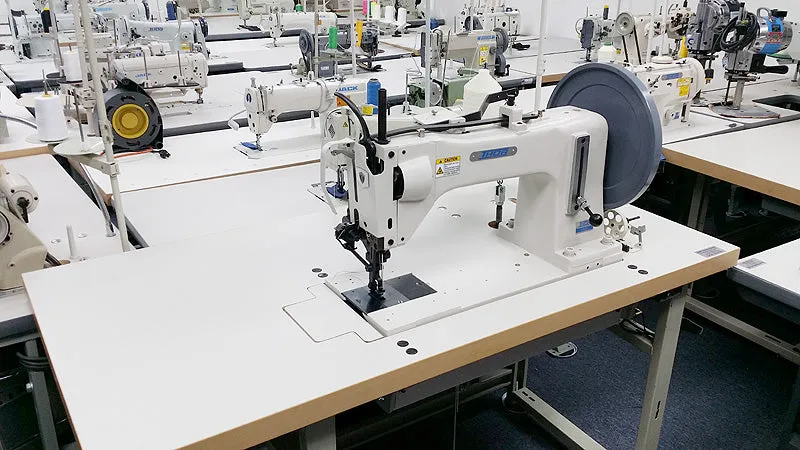

This machine ships complete and fully assembled - ready to sew upon arrival.
It includes:
- Machine Head

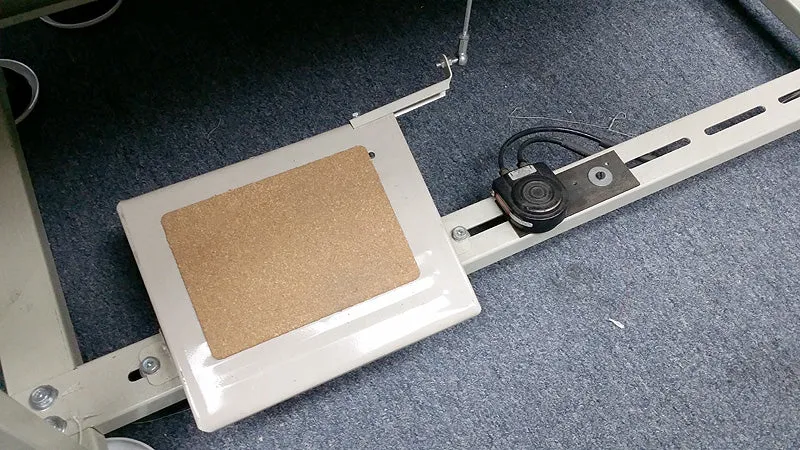

- Air Foot Lifter
- Speed Reducer
- Table Top
- Heavy Duty Stand
- SERVO Motor
- Speed Reducer (Optional)
- LED Light
- Manuals
- Extra needles, bobbins, and tools.
MOTOR & VOLTAGE:

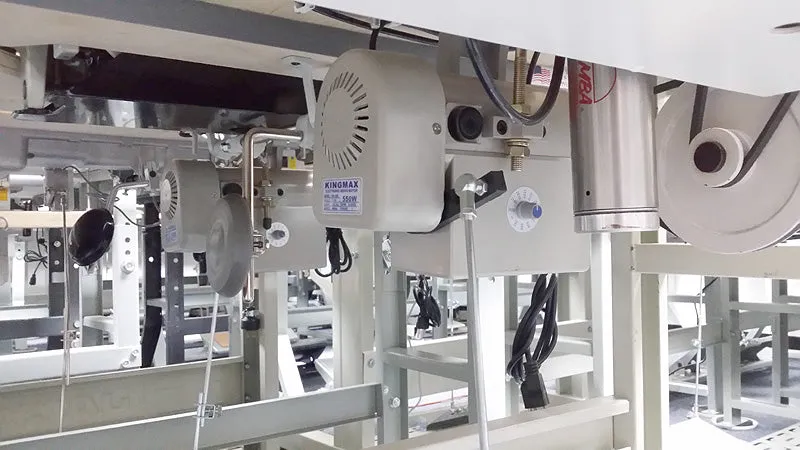

This machine is equiped with a SERVO motor operating on standard 110 Volts power.
WARRANTY:
1 Year Warranty
