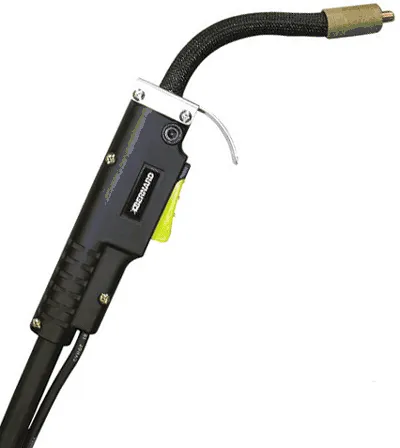

Bernard™ Dura-Flux™ Self Shielded FCAW Gun FLX3515AM

Genuine Berndard™ FLX3515AM Dura-Flux™ Gun is a 350 amp flux-cored gun specifically designed for use with self-shielded welding wires. The FLX3515AM features 15 foot length with durable fixed power cable liner and trigger shield. It comes standard with a Miller back end and is the direct replacement gun for the Miller® SuitCase™ 12 VS wire feeder. The Dura-Flux gun with fixed power cable liner is capable of feeding 1/16 - 5/64 diameter welding wires.



Features

Miller direct plug back end & 15' cable length

350 amp, 60% duty cycle

1/16" to 3/32" diameter feed capacity

Heavy duty sleeved gooseneck - 6 inch X 60 degree

Centerfire contact tips are easy-to-use and high performing - they provide better arc starts, less spatter and more consistent welds - and also last up to three times longer than competitive brands.

Trigger is sealed from outside contaminants, simply replaced and absorbs less heat than a metal trigger for long-life, greater arc-on time and lower heat output.

Trigger guard instead of full size heat shield allows access to tight spaces while protecting trigger from damage.

Ultra heavy-duty steel monocoil power cables are highly resistant to kinking for exceptional wire feed in abusive environments.

Back end with durable rigid strain relief and Miller direct plug and trigger leads connect to Miller wire feeders and machines and allow simple maintenance.

Power pin liner changes quickly without set screw for user-friendly maintenance and reduceddowntime.
